Hot-dip Galvanized Steel Sheets
High-Lubricity Hot-dip Galvanized
Steel Sheets (JAZ™/GI JAZ™)
Features
- Lubrication properties/press formability: same or higher level compared with lubricated GA
- Other properties such as weldability, adhesiveness and phosphatability: same or higher level compared with conventional GA
- Free of environmentally hazardous substances
- Applicable to GI
- Excellent lubrication properties equal to or better than EG Pre-phos.
Structure of coating
Examples of Product Properties

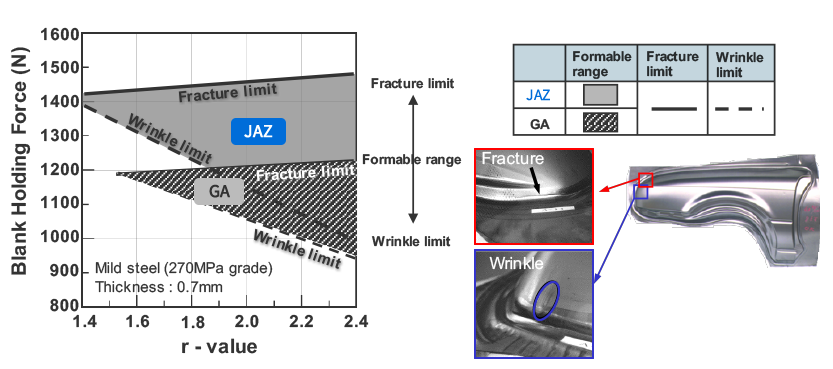

Examples of press formability evaluation results
Due to its excellent lubricity, the formable range expands and contributes to stabilizing the pressing process.

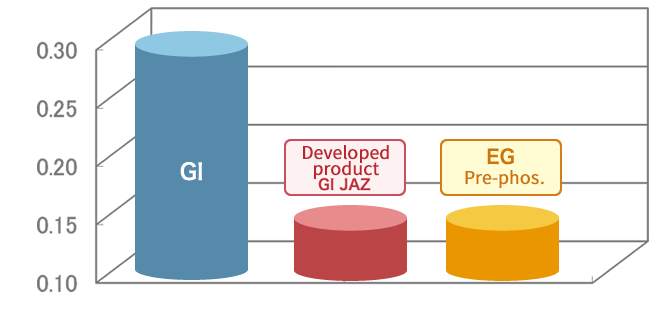

Example of application to GI
Compared with conventional GI, the friction coefficient is greatly reduced
It also exhibits excellent lubicity at the same or a higher level compared with EG Pre-phos.
Examples of Applicable Automotive Parts

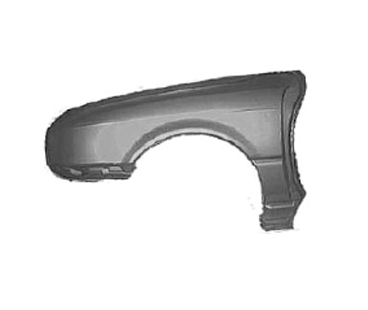

Fender

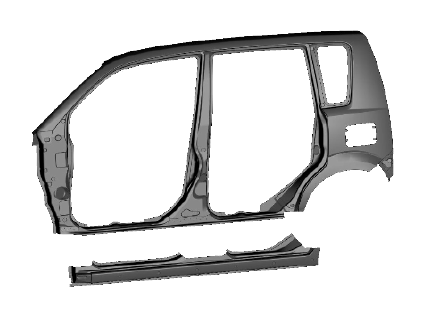

Side panel
All kinds of outer and inner parts of the automobile body (ex. side panel)
GA/GI coated steel sheets with excellent press-formability by surface lublication
High-lubricity GA / GI steel sheets enable severe press forming of outer and inner parts of the automobile body and contribute to lowering the grade of base steel sheets.
The 56th Okochi Memorial Production Prize (FY2009)
The Commendation for Science and Technology by the Minister of Education, Culture, Sports, Science and Technology (Development Category) (FY2011)
4th Monodzukuri Nippon Grand Award Minister of Economy, Trade and Industry Prize
