Features 01
Expected Problems
Aren't you having these kinds of problems in press forming?
• Product quality is unstable due to frequent occurrence of dimensional deviations caused by springback.
• Die shape tuning is extremely time-consuming and expensive, and reduces production efficiency.
• Have not established effective countermeasures because it isn't possible to identify the areas that cause springback.
Features 02
Technology highlight

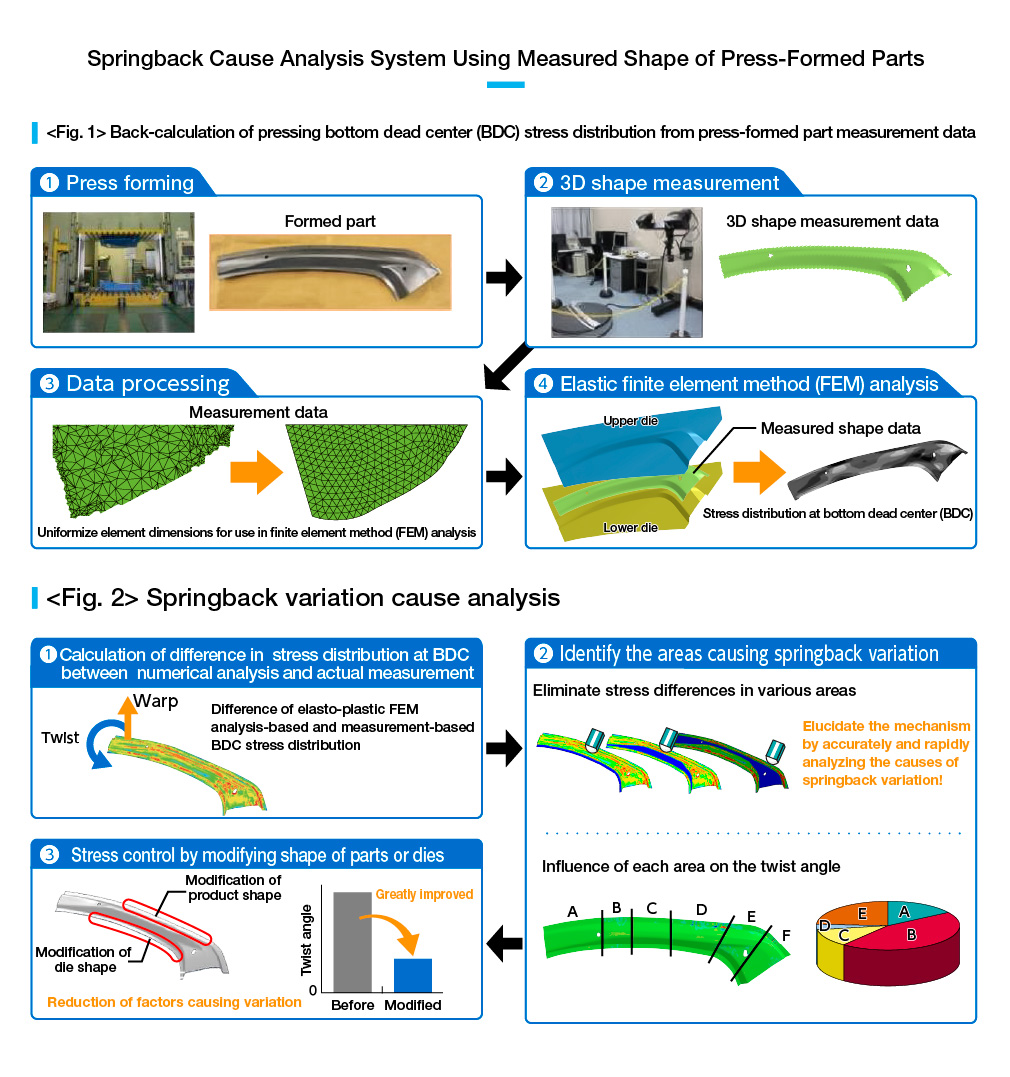

• High-accuracy back-calculation of the bottom dead center (BDC) stress distribution using 3D shape measurement data after springback of formed parts (Fig. 1).
• Calculates the difference between the BDC stress distribution by elasto-plastic FEM analysis and the measurement-based stress distribution (Fig. 2).
• Identifies the areas of stress that cause springback by analyzing the differential stress distribution (Fig. 2).
• Stress can be effectively controlled by changing the part and die geometry at the specified areas.
Features 03
Proposed Solutions (Examples)
Springback cause analysis software
